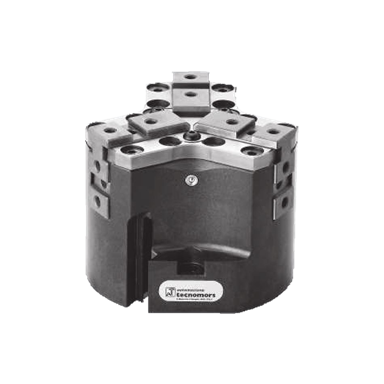

Pneumatic Grippers - OPE3
Universal three-finger centric gripper suitable for a wide range of industrial applications.
- -Robust lightweight housing made of hard-coated aluminum alloy.
- -Sturdy C-slot with hardened steel gibs for effective jaw guidance, precise handling, and easy maintenance
- -Mounting from one side in two screw directions for versatile and flexible integrations
- -Integrated permanent magnets for direct monitoring of piston movement.
- -Slots for mounting and positioning the magnetic-field sensors
- -Air supply via fitting screw connections or hose-free direct connections (optional version "X")
- -Available in 10 models
- -Maximum stroke per jaw of 15mm
- -Maximum total closing force @ 6 bar: 422N (94.9 lbf)
-
-
