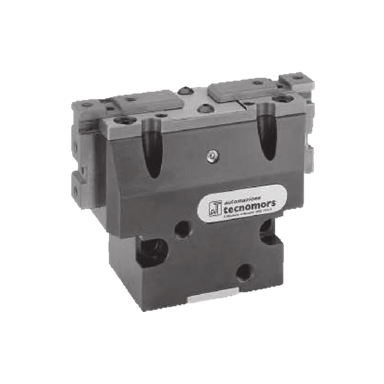

Pneumatic Grippers - OPE2
Universal two-finger parallel gripper suitable for a wide range of industrial applications.
- -Robust lightweight housing made of hard-coated aluminum alloy.
- -Sturdy C-slot with hardened steel gibs for effective jaw guidance, precise handling, and easy maintenance
- -Mounting from two sides in three screw directions for versatile and flexible integrations.
- -Side or top finger moutning
- -Integrated permanent magnets for direct monitoring of piston movement.
- -Slots for mounting and positioning of magnetic-field sensors
- -Air supply via fitting screw connections or hose-free direction connections (optional version "X")
- -Available in 8 models
- -Maximum stroke per jaw of 12mm
- -Maximum total closing force @ 6 bar: 440N (98.9 lbf)
-
